Engineered for efficiency and durability, our in-die taps deliver industry-leading cost-per-hole performance across a wide range of industrial and automotive applications. From fixtures and brackets to fasteners and seat components
INFORMATION
From leveling fixtures, to cover, to assembly brackets, they all have tapped holes that need a cost effective solution. Jarvis provide industry leading cost-per-hole solutions for a wide variety of industrial customers.
And, Jarvis knows automotive. From fasteners to seat components, we have experience in all different parts and materials.
If you need In-Die Taps, Jarvis Cutting Tools is your manufacturer for in-die tapping!
TAPS

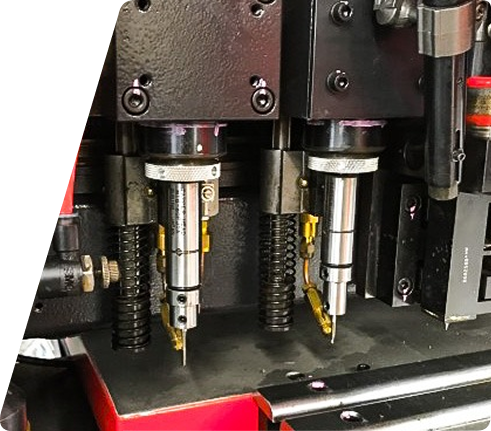

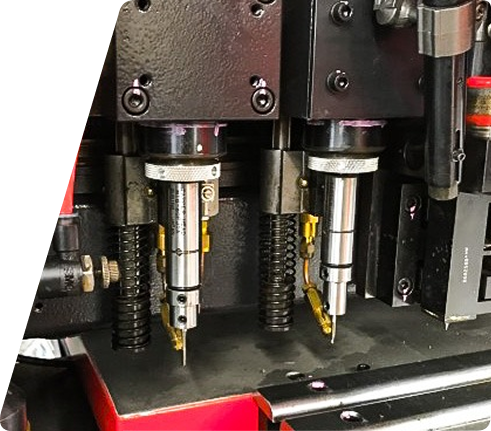

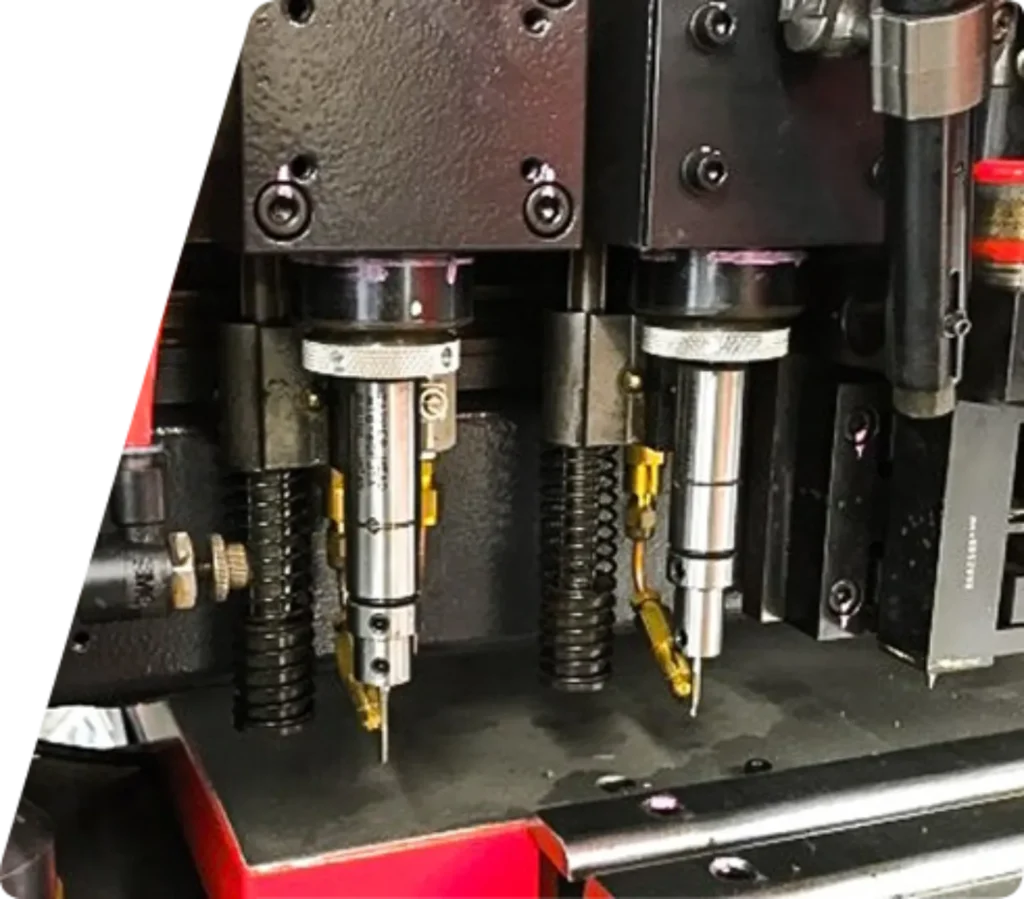

In-die taps are used in metalworking and manufacturing industries to create threaded holes in metal sheets. They are designed to be mounted within a stamping die, and they have a unique design that allows them to function with each press stroke. Unlike traditional tapping tools, in-die tapping tools do not require a separate tapping operation since they are automatically integrated into the stamping process. They are typically used to produce threads in a variety of sheet metals, including aluminum, stainless steel, and brass.
In-die tapping tools are an essential part of the metal fabrication process. Jarvis in-die taps are used to create threaded holes in a metal part, typically during the stamping or blanking process, without the need for additional drilling or tapping operations. Our in-die taps are designed to tap the threads into the part at the same time as it is being stamped. This process saves time and money by reducing the number of steps required in the manufacturing process. Our taps s can be customized to match the specific thread size and pitch needed for each individual part. The use of Jarvis in-die taps ensures a high-quality finished product and reduces the likelihood of defects or errors in the production process. Our taps are a great investment for any metal fabricator looking to improve their efficiency and productivity.
Products Categories
Products Delivered
Certified Partners
Client Satisfaction
TAPS
Turret taps are designed to hold multiple taps so that different sizes and shapes of holes can be made in a single operation. The turret tap tool is a rotating tool holder that can hold up to six taps, allowing the operator to quickly change between them as needed. These automated punching systems that feature a 30+ton turret punch press that’s equipped with a high capacity tool rack and an automatic tool changer. This saves time and increases efficiency by eliminating the need to manually switch out tools. The turret tap tool is especially useful for high-volume production runs that require multiple holes to be made quickly and accurately. The tool is designed to work with a variety of materials.
Turret tap tools are a versatile type of cutting tool that are used to create screw threads on the inside of a hole or cylindrical surface. This line of Jarvis taps are designed to fit into a turret, which is a rotating tool holder that is found on certain types of lathes and milling machines. The advantage of using a turret tap tool is that it allows for rapid and efficient threading of multiple holes, as the tool can be quickly swapped out and adjusted to fit different sizes of holes. The cutting edges of the tool are made of high-speed steel, and Jarvis offers a variety of sizes and shapes to match the desired thread size and pitch. Turret tap tools are commonly used in the production of automotive and aerospace components, as well as in the manufacture of consumer products such as electronics and appliances.
THREADS
Jarvis Cutting Tools stocks TRUMPF-style tap blanks for both Type I and Type II tool holders, with the ability to provide finished goods tailored to your specific application needs.

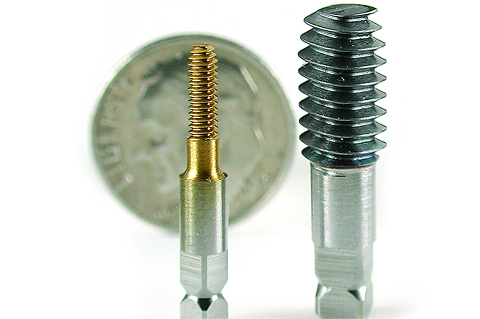

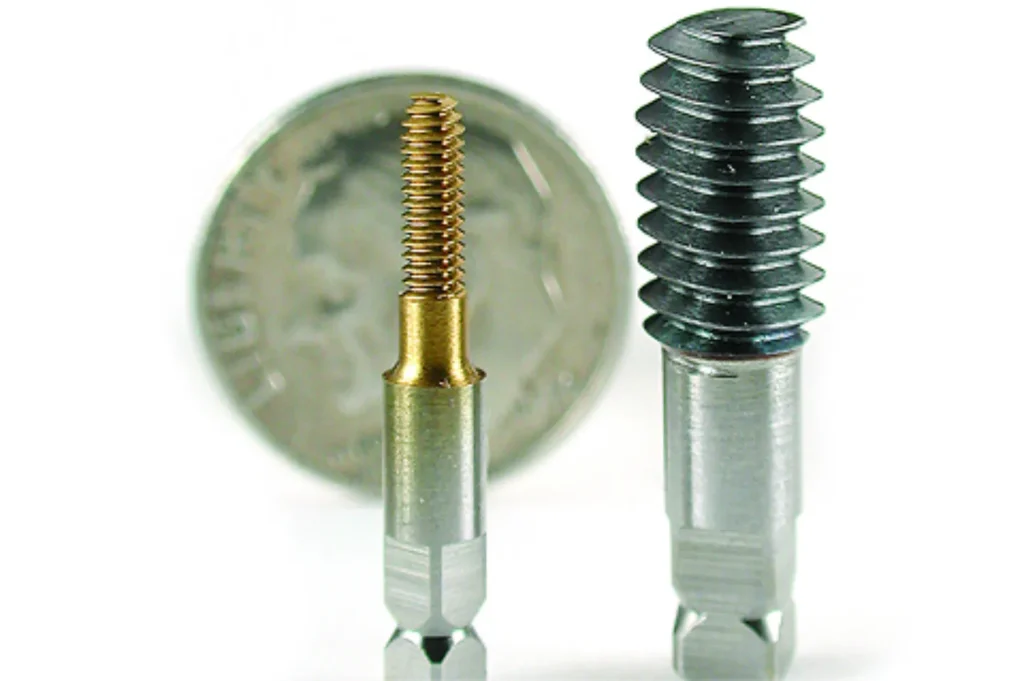

Jarvis TRUMPF-style taps form threads. directly on the machine, without chip formation- as the forming taps displace the material instead of cutting. Allowing you to create threads in a pre-processed punched hole or extrusion. Our formed threads have a higher strength (compared to cut threads) and also have a higher accuracy of fit.
By choosing Jarvis, an American manufacturer, you gain access to a local network of manufacturing expertise and technical support, which can help to streamline your supply chain and ensure consistent quality control. Confidently reach out to Jarvis Cutting Tools and experience the benefits of high-quality American manufacturing firsthand. Tell us about your TRUMPF application on the form.
Download Now
IN-DIE TAPS
AUTOMOTIVE IS TOUGH – More and more companies are reviewing their supply chains and asking “Should my supplier be based in America?”
Jarvis’ manufacturing headquarters is proudly located in New Hampshire and our satellite engineering locations are strategically placed throughout the US, Canada and Mexico.
If you’re located in North America – we’ve got you covered.
We invite purchasing managers to schedule a time with Costikyan to discuss how we have provided cost effective solutions for taps used on a regular basis (as well as on taps only used occasionally).
No matter your application- We can help! We have increased tool life on basic materials applications all the way to AHSS metals.
| Part ID | Description | Class of Fit | Coating | Price 2023 |
|---|---|---|---|---|
| R868805C | M5 X 0.8 D7B 4LG IN-DIE JARFLO | 6H | TiCN | $36.76 |
| R870686C | M5 X 0.8 D7B IN-DIE JARFLO ULTRA | 6H | TiCN | $53.01 |
| R870469C | M5 X 0.8 D9B 4LG IN-DIE JARFLO | 6HX, 6G | TiCN | $36.76 |
| R870687C | M5 X 0.8 D9B IN-DIE JARFLO ULTRA | 6HX, 6G, 7H | TiCN | $53.01 |
| R868806C | M6 X 1.0 D8B 4LG IN-DIE JARFLO | 6H | TiCN | $38.63 |
| R868806T | M6 X 1.0 D8B 4LG IN-DIE JARFLO | 6H | TiN | $38.63 |
| R873004C | M6 X 1.0 D8B 5LG IN-DIE JARFLO ULTRA | 6H | TiCN | $55.74 |
| R870480T | M6 X 1.0 D10B IN-DIE 4LG JARFLO | 6HX, 6G, 7H | TiN | $38.63 |
| R870480C | M6 X 1.0 D10B IN-DIE 4LG JARFLO | 6HX, 6G | TiCN | $38.63 |
| R870499C | M6 X 1.0 D10B 5LG IN-DIE JARFLO ULTRA | 6HX, 6G, 7H | TiCN | $55.74 |
| R870153T | M6 X 1.0 D11B 4LG IN-DIE JARFLO | OS | TiN | $38.63 |
| R870153C | M6 X 1.0 D11B 4LG IN-DIE JARFLO | OS | TiCN | $38.63 |
| R870166C | M6 X 1.0 D11 5LG IN-DIE JARFLO ULTRA | OS | TiCN | $55.74 |
| R868808C | M8 X 1.25 D9B 4LG IN-DIE JARFLO | 6H | TiCN | $51.14 |
| R868808T | M8 X 1.25 D9B 4LG IN-DIE JARFLO | 6H | TiN | $51.14 |
| R870168C | M8 X 1.25 D9B 6LG IN-DIE JARFLO ULTRA | 6H | TiCN | $71.41 |
| R870491T | M8 X 1.25 D11B 4LG IN-DIE JARFLO | 6HX, 6G, 7H | TiN | $51.14 |
| R870491C | M8 X 1.25 D11B 4LG IN-DIE JARFLO | 6HX, 6G, 7H | TiCN | $51.14 |
| R870296C | M8 X 1.25 D11B 6LG IN-DIE JARFLO ULTRA | 6HX, 6G, 7H | TiCN | $71.41 |
| R868810T | M10 X 1.5 D10B RLG IN-DIE JARFLO | 6H | TiN | $62.36 |
| R868810C | M10 X 1.5 D10B RLG IN-DIE JARFLO | 6H | TiCN | $62.36 |
| R870280C | M10 X 1.5 D10B 6LG IN-DIE JARFLO ULTRA | 6H | TiCN | $90.00 |
| R870492T | M10 X 1.5 D13B 4LG IN-DIE JARFLO | 6HX, 6G, 7H | TiN | $62.36 |
| R870492C | M10 X 1.5 D13B 4LG IN-DIE JARFLO | 6HX, 6G, 7H | TiCN | $62.36 |
| R870170C | M10 X 1.5 6HX-D13 6LG IN-DIE JARFLO ULTRA | 6HX, 6G, 7H | TiCN | $90.00 |
| R870661T | M10 X 1.0 D8B IN-DIE JARFLO | 6H | TiN | $62.36 |
| R870661C | M10 X 1.0 D8B IN-DIE JARFLO | 6H | TiCN | $62.36 |
| R870672C | M10 X 1.0 D8B IN-DIE JARFLO ULTRA | 6H | TiCN | $90.00 |
| R870662T | M10 X 1.0 D10B IN-DIE JARFLO | 6H, 6G, 7H | TiN | $62.36 |
| R870662C | M10 X 1.0 D10B IN-DIE JARFLO | 6H, 6G, 7H | TiCN | $62.36 |
| R870673C | M10 X 1.0 D10B IN-DIE JARFLO ULTRA | 6HX, 6G, 7H | TiCN | $90.00 |
The above items are stocked standards at Jarvis— meaning they may be able to ship the same day you place the order!
We offer competitive discounts for distributors and based on volume. Please contact your Sales Representative or Account Manager for discounts.
All prices are in US dollars. All listings, pricing, availability and specifications are subject to change at any time without notice.
Pricing, photographic and typographical errors are subject to correction at any time.
